BATHOLOGY DOTLESS LED LIGHTING SYSTEM

from $450.00

Bathology Spectrum 360 Sauna LED Lighting Control System for use with Bathology Brilliance 360 LED Light Strips. Touch-sensitive illuminated control button controls power and infinite dimming. Continuous LED light with no spots.

Each kit includes a control system and the chosen size/number of light fixture(s). Each control system operates up to 4 LED white light strips (available in 5 sizes).

NOTE: We’re working on replacing the Spectrum 360 system and a new control system is expected to be introduced in June 2026!

Bathology Spectrum 360 Sauna LED Lighting Control System for use with Bathology Brilliance 360 LED Light Strips. Touch-sensitive illuminated control button controls power and infinite dimming. Continuous LED light with no spots.

Each kit includes a control system and the chosen size/number of light fixture(s). Each control system operates up to 4 LED white light strips (available in 5 sizes).

NOTE: We’re working on replacing the Spectrum 360 system and a new control system is expected to be introduced in June 2026!

Control System:
Light Fixture Size:
Number of Light Strips:

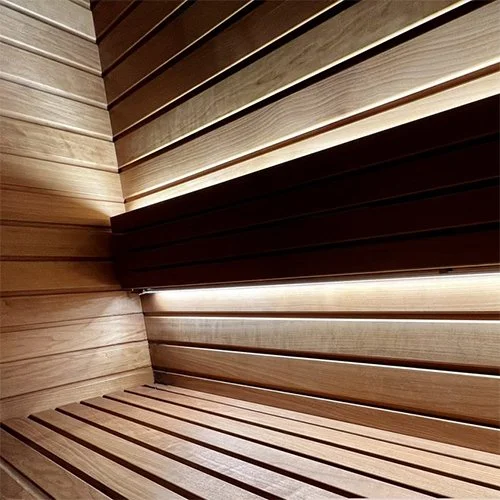

Create sophisticated and inviting ambient lighting effects in your sauna with the Bathology Brilliance 360 Dimmable LED Light Strip. These continuous LED light strips feature an integrated diffusing lens to create a more upscale, modern, and dotless effect.

When used with the required Bathology Spectrum 360 Control System, features an elegant flush-mounted chrome power button with an illuminated outer ring, you have infinite adjustment of brightness with the illuminated, flush-mounted, touch-sensitive power switch. Just tap to turn on/off or touch and hold to dim/brighten.

  • Spectrum 360

    • Touch-sensitive on/off and dimmer button

    • Power supply

    • Power cord

    • Extension connectors

    • 4-way splitter

    Brilliance 360-12

    • Dotless LED light strip is 12" long

    • Creates the perfect illumination

    • Touch activated illuminated dimmer

    • Anodized aluminum channel

    • Frosted lens

    Brilliance 360-24

    • Dotless LED light strip is 24" long

    • Creates the perfect illumination

    • Touch activated illuminated dimmer

    • Anodized aluminum channel

    • Frosted lens

    Brilliance 360-36

    • Dotless LED light strip is 36" long

    • Creates the perfect illumination

    • Touch activated illuminated dimmer

    • Anodized aluminum channel

    • Frosted lens

    Brilliance 360-48

    • Dotless LED light strip is 48" long

    • Creates the perfect illumination

    • Touch activated illuminated dimmer

    • Anodized aluminum channel

    • Frosted lens

    Brilliance 360-60

    • Dotless LED light strip is 60" long

    • Creates the perfect illumination

    • Touch activated illuminated dimmer

    • Anodized aluminum channel

    • Frosted lens

  • SPECTRUM 360

    TOUCH ACTIVATED DIMMER

    • Operating Voltage: 24VDC

    • Power Consumption: 72W

    • Dimming Range: 0% - 100%

    • Diameter: 3/4" Body and 15/16" Trim

    • Depth: 13/16"

    • Rough-In Cutout: 3/4"

    • Finish: Polished Chrome, Illuminated

    • Connector: 50' Barrel Connector

    • Rating: IP20

    POWER SUPPLY

    • Input Voltage: 120VAC

    • Output Voltage: 24VDC

    • Power Consumption: 90W

    • Nominal Amperage: 1.3A

    • Connector: 50'

    • Rating: UL, CE, FCC

    BRILLIANCE 360-12

    • Rating: IP67

    • Operating Voltage: 24VDC

    • Lumens: 230 Lumens

    • Kelvin Temperature: 3000K

    • Connection: 20' Barrel Connector

    • Dimensions: 12"L x 11/16"W x 7/16"H

    BRILLIANCE 360-24

    • Rating: IP67

    • Operating Voltage: 24VDC

    • Lumens: 460 Lumens

    • Kelvin Temperature: 3000K

    • Connection: 20' Barrel Connector

    • Dimensions: 24"L x 11/16"W x 7/16"H

    BRILLIANCE 360-36

    • Rating: IP67

    • Operating Voltage: 24VDC

    • Lumens: 690 Lumens

    • Kelvin Temperature: 3000K

    • Connection: 20' Barrel Connector

    • Dimensions: 36"L x 11/16"W x 7/16"H

    BRILLIANCE 360-48

    • Rating: IP67

    • Operating Voltage: 24VDC

    • Lumens: 920 Lumens

    • Kelvin Temperature: 3000K

    • Connection: 20' Barrel Connector

    • Dimensions: 48"L x 11/16"W x 7/16"H

    BRILLIANCE 360-60

    • Rating: IP67

    • Operating Voltage: 24VDC

    • Lumens: 1150 Lumens

    • Kelvin Temperature: 3000K

    • Connection: 20' Barrel Connector

    • Dimensions: 60"L x 11/16"W x 7/16"H

  • Spectrum 360

    • Touch Activated Dimmer

    • Power Supply

    • Power Cord

    • 50’ DC Power Cables (2)

    • 1-4 Port DC Splitter

    • Installation and Operation Manual

    Includes the below chosen light fixture(s):

    Brilliance 360-12

    • 12” LED Light Strip

    • 20’ DC Cable

    Brilliance 360-24

    • 24” LED Light Strip

    • 20’ DC Cable

    Brilliance 360-36

    • 36” LED Light Strip

    • 20’ DC Cable

    Brilliance 360-48

    • 48” LED Light Strip

    • 20’ DC Cable

    Brilliance 360-60

    • 60” LED Light Strip

    • 20’ DC Cable

    • Current ETA: 1-2 weeks. Shipping lead time is subject to change.

    • FREE shipping within the contiguous United States.

    **If you’re in Canada, please reach out for a shipping quote.

  • Spectrum 360 Manual
