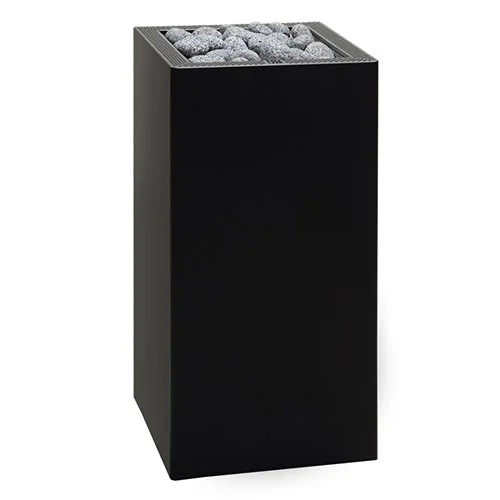

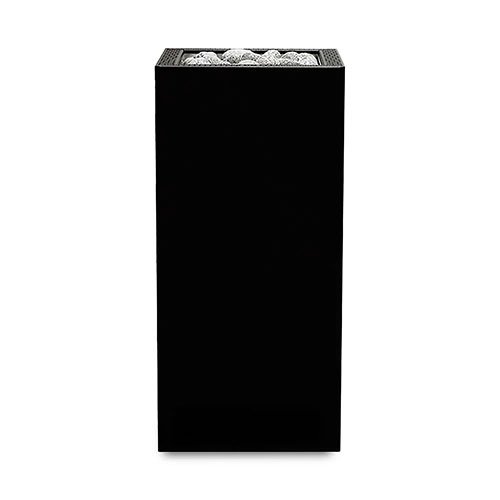

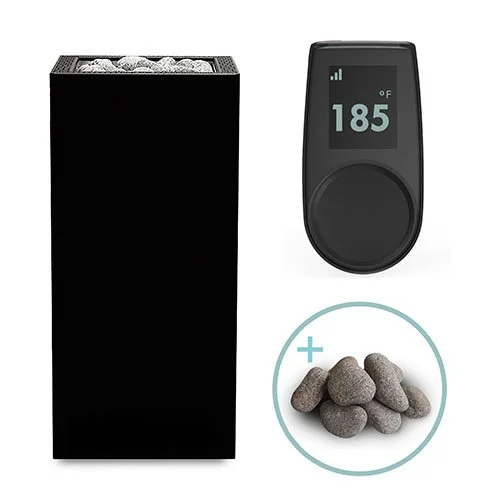

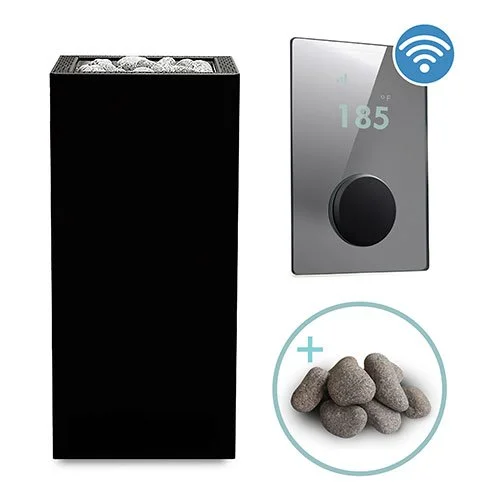

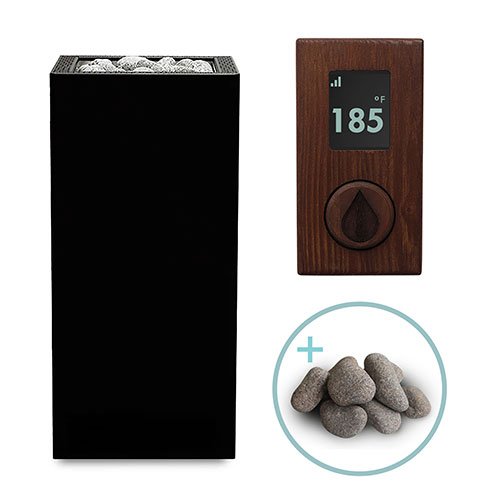

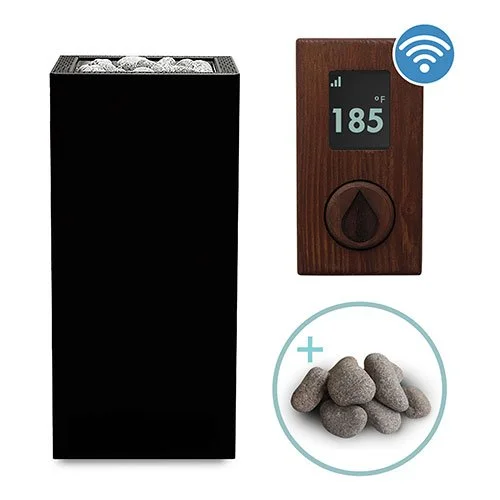

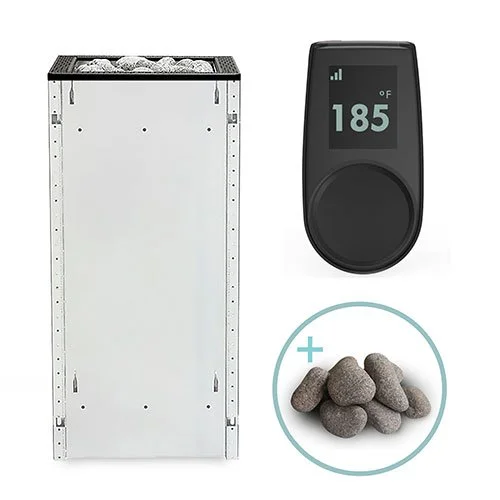

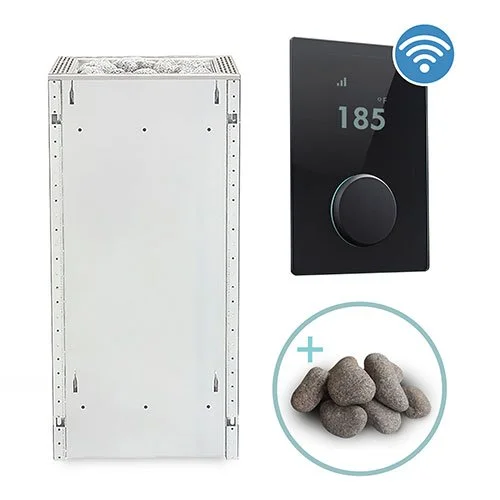

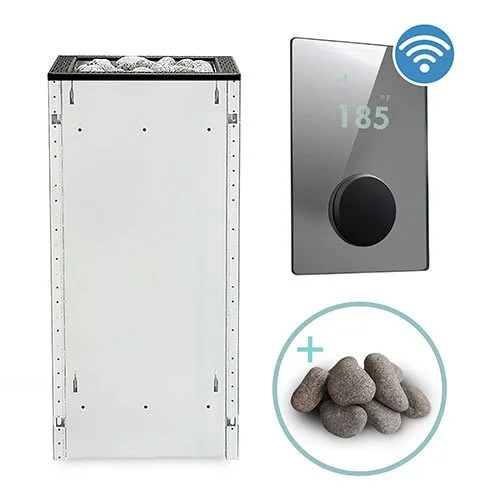

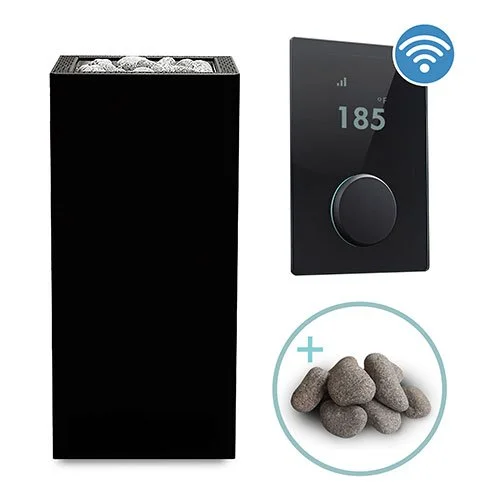

HUUM CORE NAKED SAUNA HEATER PACKAGE
The HUUM CORE Sauna Heater is built to reflect the personality of its owner while providing exceptional performance and luxurious steam with a modern, refined look.

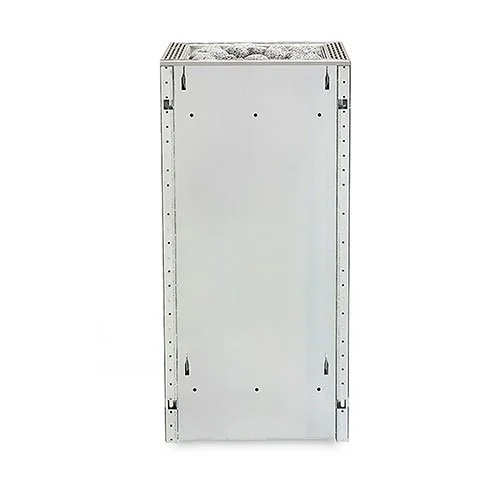

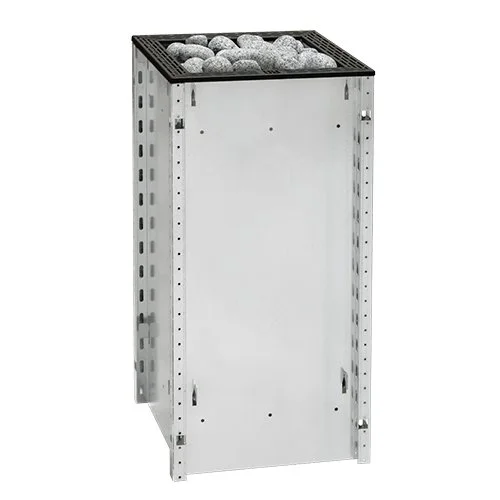

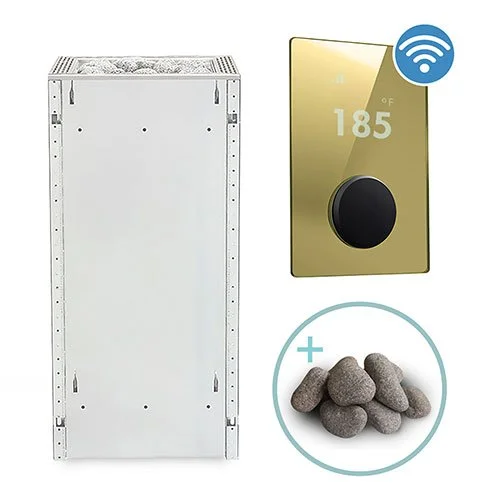

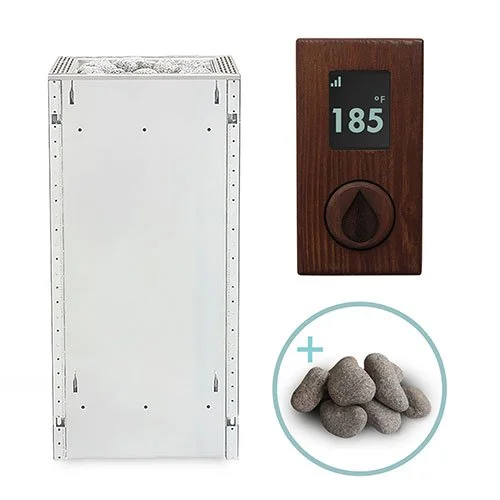

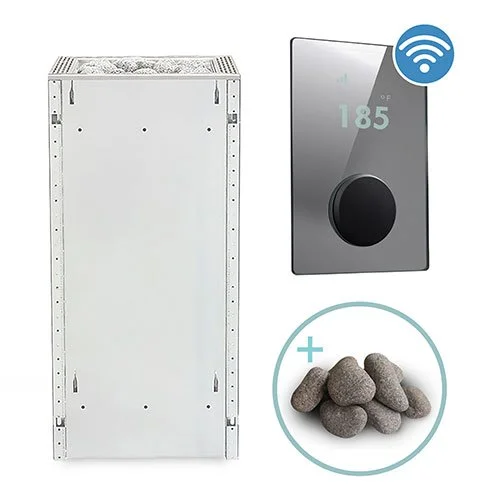

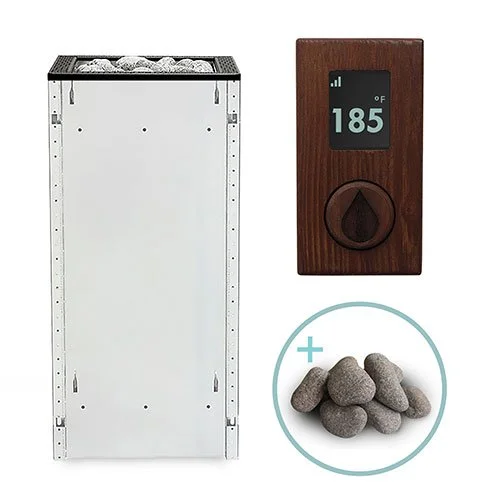

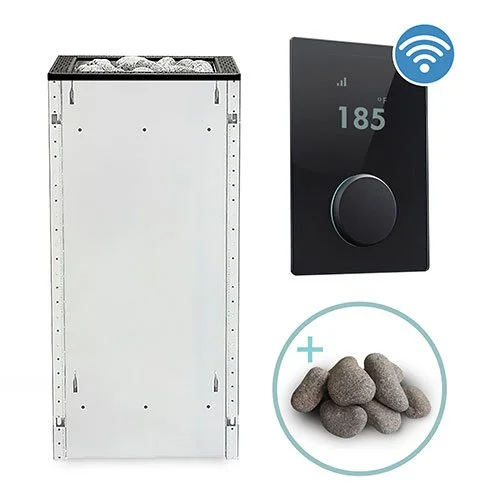

Crafted in Estonia where sauna is a way of life, the HUUM CORE BK/ST is constructed from stainless steel with different inlay finishes to choose from. The unit arrives without a casing for easy customization with ceramic tiles, stone, glass or wood to personalize the heater and make it your own. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.
The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.
Backed by a 3-year warranty for private use, the HUUM CORE BK/ST Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.
-
Core Sauna Heater
240V/1PH operation
Customizable design with choice of different inlay finishes
Allows personalization with ceramic tiles, stone, glass, or wood
Can be completely embedded into a sauna bench
Direct contact between stones and heating elements
Stainless steel, industrial quality heating elements
Designed, engineered, and made in Estonia
Works with UKU Controls
66 pound stone capacity
Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm) x 32.7"H (83 cm)
Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)
UKU
Sleek Black control display panel

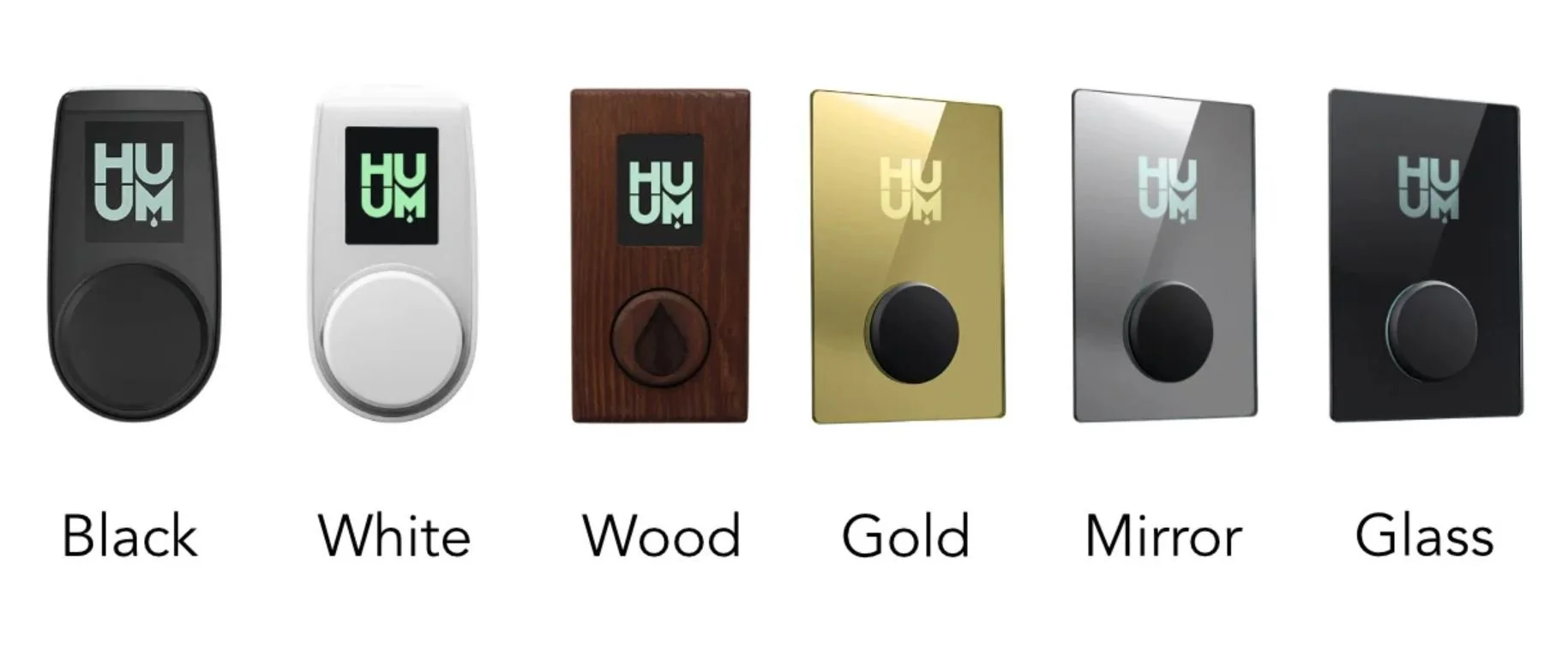

Multiple Color Options available (additional charges apply)
Settable on/off, time, temperature, and delay
Settable temperature range of 104-230F
Delayed start up to 48hrs in advance
Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
Inside/outside sauna room installation
Optional smart heating setting
Available decorative control display panels
Displays set temperature and room temperature
Temperature sensor
Door sensor to keep the heat inside the room
Remotely located main control module
Connects to lights and ventilation
Overheat protection
Child safety lock
Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

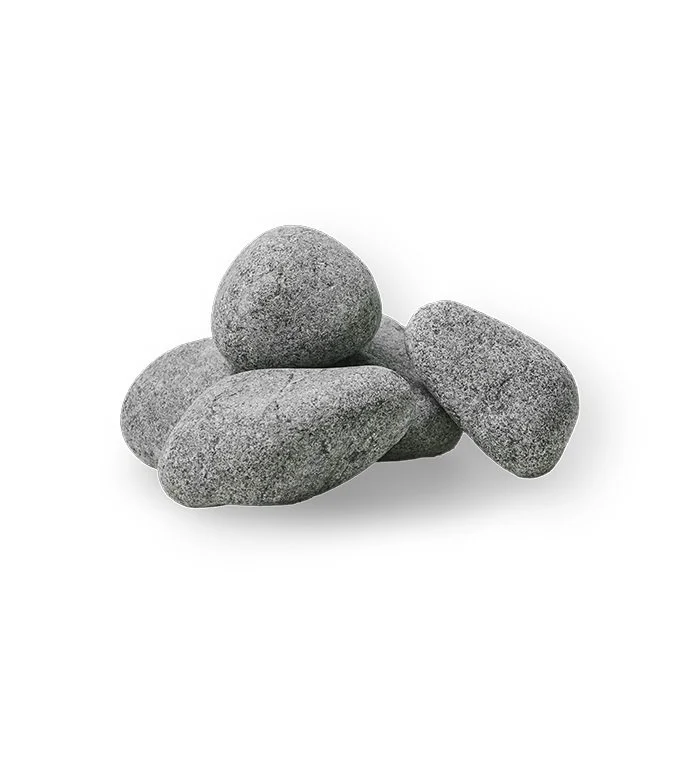

Stones 24
Olivine diabase sauna stones
Rounded shape to complement heater design
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)
-
CORE BK/ST
Room Size: 177-566 cu. ft.
Wattage Rating: 6500-10500
Voltage: 240
Phase: 1
Amperage: 25-43.75
Circuit Breaker: See Installation and Operation Manual
Wire Size AWG: 10 or 8
Safety Listing: CE (CE Certificate)
Minimum Ceiling Height: 80" (203 cm)
Safety Distance (Front to Back): See Installation and Operation Manual
Safety Distance (Left to Right): See Installation and Operation Manual
Stone Capacity: 66 lbs (30 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 12.2" (31 cm)
Depth: 12.2" (31 cm)
Height: 32.7" (83 cm)
Weight: 41.9 lbs (19 kg)
Shipping Weight with Sauna Stones: 107.9 lbs (48.9 kg)
CORE BK/ST 6
Room Size: 177-318 cu. ft.
Wattage Rating: 6500
Amperage: 25
Wire Size AWG: 10
CORE BK/ST 9
Room Size: 283-460 cu. ft.
Wattage Rating: 9000
Amperage: 37.5
Wire Size AWG: 8
CORE BK/ST 11
Room Size: 354-566 cu. ft.
Wattage Rating: 10500
Amperage: 43.75
Wire Size AWG: 8
UKU
Minimum Temperature Setting: 104°F
Maximum Temperature Setting: 230°F
Shipping Weight: 20 lbs
Console Dimensions
Width: 2.2" (55mm)
Depth: 0.9" (22mm)
Height: 4.1" (105mm)
Main Module Dimensions
Width: 3.5" (90mm)
Depth: 2.3" (58mm)
Height: 5.6" (142mm)
Display Panel Cable
Length: 9.8 ft
AWG: 22
Temp Sensor Cable
Length: 16.4 ft
AWG: 24
Door Sensor Cable
Length: 16.4 ft
AWG: 24
-
Core Sauna Heater
Sauna Heater
Adjustable Legs (4)
Unfinished Metal Shields (4)
Cover Strips (4)
Cover Strip Fastening Screws
Installation and Operation Manual
3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
UKU
Black Control console
Main control module
Temperature sensor
Door sensor
Control display panel cable
Temperature sensor cable
Door sensor cable
Installation and operation manual
3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
Stones 24
66 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
-
