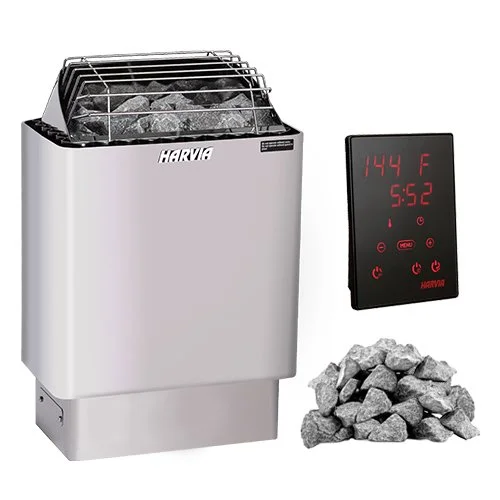

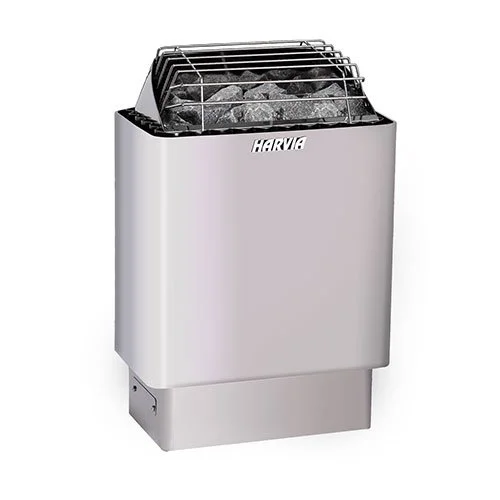

HARVIA KIP SAUNA HEATER WITH WIFI
In the rich tradition of authentic Finnish saunas, the wall-mounted KIP45W/KIP60W/KIP80W sauna heater generates a satisfying, penetrating heat. The 4.5-kilowatt or 6.0-kilowatt or 8.0-kilowatt heater includes professional-grade stainless-steel heating elements and stainless-steel components.
The unit is designed so that the sauna rocks are in direct contact with the heating elements for improved efficiency. The KIP sauna oven features triple-wall construction for greater safety and lower surface temperatures. Its exceptionally large rock capacity provides optimal heat storage.
When you buy a sauna, quality and value are important. Harvia sauna heaters are engineered to provide years of safe, reliable, and efficient operation.
The KIP electric sauna stove creates a traditional sauna experience by blanketing the room with intense heat. Harvia KIP Series heaters are perfect for any home sauna kit.
The Harvia KIP series heater is available in 240V, single-phase (1PH) and 208V, three-phase (3PH) configurations. The KIP sauna heater requires a Xenio control for operation. The KIP carries a limited lifetime warranty and is fully serviceable. All Harvia sauna heaters are UL and ETL listed and tested for your safety.
-
KIP45W Sauna Heater
Wall-mounted design
Dual wall keeps exterior cool to the touch
Industrial grade, serviceable heating elements
Direct rock-to-heating element contact
Stainless steel construction
Designed, engineered, and made in Finland
For sauna rooms from 100 to 210 cu. ft.
44 pound stone capacity
Dimensions: 16.1"W (40.9 cm) x 11"D (27.9 cm) x 23.6"H (59.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
KIP60W Sauna Heater
Wall-mounted design
Dual wall keeps exterior cool to the touch
Industrial grade, serviceable heating elements
Direct rock-to-heating element contact
Stainless steel construction
Designed, engineered, and made in Finland
For sauna rooms from 170 to 300 cu. ft.
44 pound stone capacity
Dimensions: 16.1"W (40.9 cm) x 11"D (27.9 cm) x 23.6"H (59.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
KIP80W Sauna Heater
Wall-mounted design
Dual wall keeps exterior cool to the touch
Industrial grade, serviceable heating elements
Direct rock-to-heating element contact
Stainless steel construction
Designed, engineered, and made in Finland
For sauna rooms from 250 to 425 cu. ft.
44 pound stone capacity
Dimensions: 16.1"W (40.9 cm) x 11"D (27.9 cm) x 23.6"H (59.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

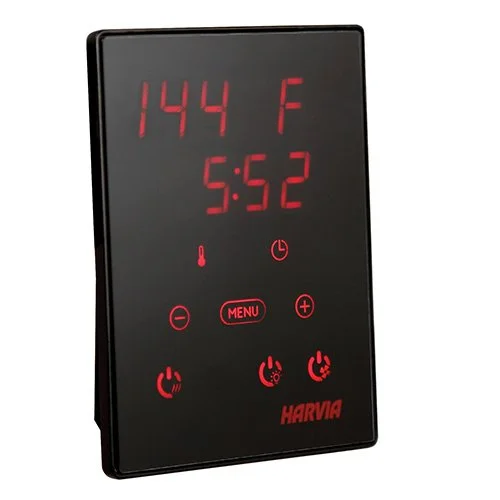

Xenio Wi-Fi Control
Modern control unit that is precise and easy
Wi-Fi connectivity for remote control and monitoring
Controls time, temperature, lighting, and fan
Operating temperature range of 104-194°F
Surface of flush-mount installation type
Can be installed inside or outside the sauna room
Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

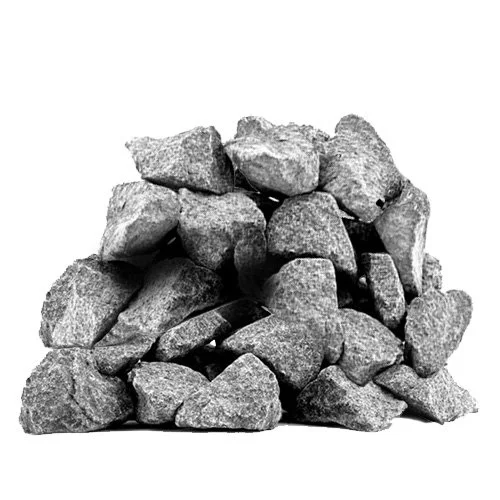

Sauna Stones
Olivine diabase sauna stones
Split-face shape
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)
-
KIP45W
Room Size: 100-210 cu. ft.
Wattage Rating: 4500
Voltage: 240/208V
Phase: 1PH/3PH
240V, Single Phase Amperage: 18.8 Amps
208V, 3-Phase Amperage: 12.5 Amps
Circuit Breaker: See Owners Manual
Wire Size AWG: 10/2 + 14/2 or 14/3 + 14/2
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): 13" (33 cm)
Safety Distance (Left to Right): 20.1" (51.1 cm)
Stone Capacity: 44 lbs (20 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 16.1" (40.9 cm)
Depth: 11" (27.9 cm)
Height: 23.6" (59.9 cm)
Weight: 29 lbs (13.2 kg)
Shipping Weight with Sauna Stones: 73 lbs (33.1 kg)
KIP60W
Room Size: 170-300 cu. ft.
Wattage Rating: 6000
Voltage: 240V/208V
Phase: 1PH/3PH
240V, Single Phase Amperage: 25 Amps
208V, 3-Phase Amperage: 16.7 Amps
Circuit Breaker: See Owners Manual
Wire Size AWG: 10/2 + 14/2 or 12/3 + 14/2
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): 13" (33 cm)
Safety Distance (Left to Right): 20.1" (51.1 cm)
Stone Capacity: 44 lbs (20 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 16.1" (40.9 cm)
Depth: 11" (27.9 cm)
Height: 23.6" (59.9 cm)
Weight: 29.7 lbs (13.5 kg)
Shipping Weight with Sauna Stones: 73.7 lbs (33.4 kg)
KIP80W
Room Size: 250-425 cu. ft.
Wattage Rating: 8000
Voltage: 240V/208V
Phase: 1PH/3PH
240V, Single Phase Amperage: 33.3 Amps
208V, 3-Phase Amperage: 22.2 Amps
Circuit Breaker: See Owners Manual
Wire Size AWG: 8/2 + 14/2 or 10/3 + 14/2
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): 13" (33 cm)
Safety Distance (Left to Right): 20.1" (51.1 cm)
Stone Capacity: 44 lbs (20 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 16.1" (40.9 cm)
Depth: 11" (27.9 cm)
Height: 23.6" (59.9 cm)
Weight: 30 lbs (13.6 kg)
Shipping Weight with Sauna Stones: 74 lbs (33.6 kg)
Xenio CX170-U1-15-XW
Power unit supply Voltage: 240 V
Maximum output kilowatt: 10.5kW
Phase: 1
Temperature adjustment range: 104-194F
Pre-setting time adjustment range: 0-12 Hours
Width: 3.4" (8.6 cm)
Depth: 1" (2.5 cm)
Height: 4.4" (11.2 cm)
Xenio CX170-U3-15-XW
Power unit supply Voltage: 208 V
Maximum output kilowatt: 15kW
Phase: 3
Temperature adjustment range: 104-194F
Pre-setting time adjustment range: 0-12 Hours
Width: 3.4" (8.6 cm)
Depth: 1" (2.5 cm)
Height: 4.4" (11.2 cm)
-
KIPW Sauna Heater
Sauna Heater
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Xenio Wi-Fi Control
Control
Temperature Sensor
Power Unit
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
44 lbs of 2" to 4" (5-10 cm) Split-Face Stones
-
