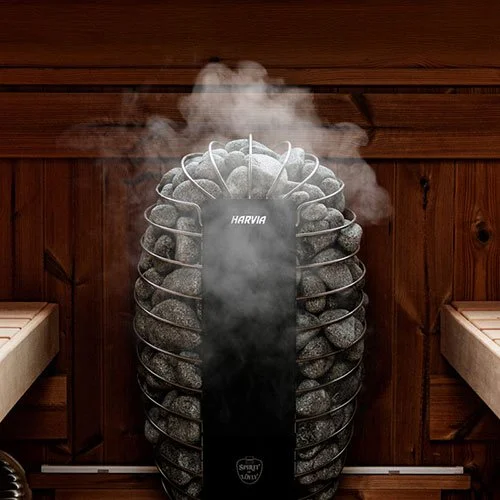

HARVIA SPIRIT SAUNA HEATER WITH WIFI
The integrated safety features of the Spirit ensure that the heater cannot be turned on if items are placed on top of it, making it is safe to start the heater remotely using the available Wi-Fi app. It has dual safety sensors with one monitoring the heater and one monitoring the temperature of the sauna room to prevent overheating.
-
Spirit SP60E Sauna Heater
Wall-mounted design
Stylish and high-quality heater
Heats up the sauna quickly and safely
Integrated safety functions ensure safe use
Compatible with the Xenio Controls
Designed, engineered, and made in Finland
For sauna rooms from 177 to 294 cubic feet (CF).
110 pound stone capacity
Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
Spirit SP80E Sauna Heater
Wall-mounted design
Stylish and high-quality heater
Heats up the sauna quickly and safely
Integrated safety functions ensure safe use
Compatible with the Xenio Controls
Designed, engineered, and made in Finland
For sauna rooms from 177 to 431 cubic feet (CF).
110 pound stone capacity
Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
Spirit SP90E Sauna Heater
Wall-mounted design
Stylish and high-quality heater
Heats up the sauna quickly and safely
Integrated safety functions ensure safe use
Compatible with the Xenio Controls
Designed, engineered, and made in Finland
For sauna rooms from 177 to 494 cubic feet (CF).
110 pound stone capacity
Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

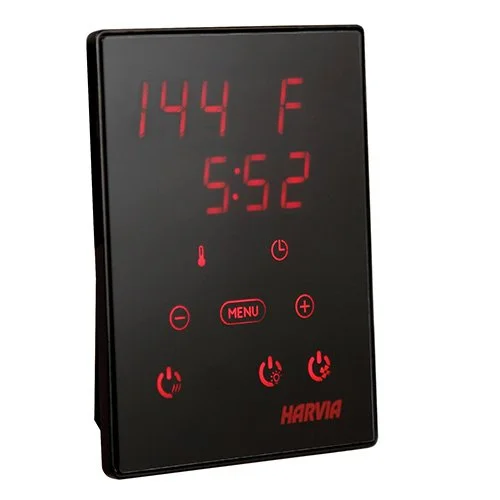

Xenio Wi-Fi Control
Modern control unit that is precise and easy
Wi-Fi connectivity for remote control and monitoring
Controls time, temperature, lighting, and fan
Operating temperature range of 104-194°F
Surface of flush-mount installation type
Can be installed inside or outside the sauna room
Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

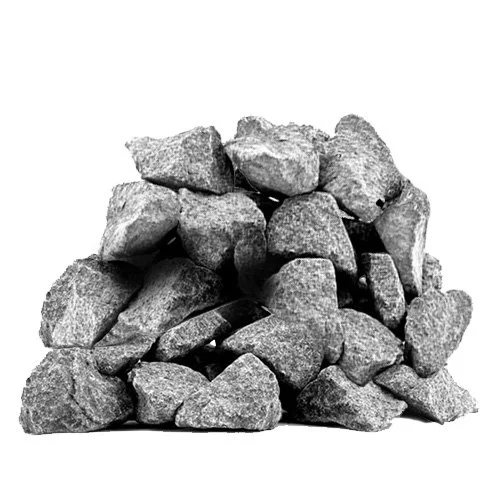

Sauna Stones
Olivine diabase sauna stones
Round shape
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)
-
SP60E
Room Size: 177-294 cu. ft.
Wattage Rating: 6000
Voltage: 240
Phase: 1
Amperage: 25
Circuit Breaker: See Installation and Operation Manual
Wire Size AWG: 10
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): See Installation and Operation Manual
Safety Distance (Left to Right): See Installation and Operation Manual
Stone Capacity: 110 lbs (49.9 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 15" (38.1 cm)
Depth: 13.1" (33.3 cm)
Height: 29.5" (74.9 cm)
Weight: 28.8 lbs (13.1 kg)
Shipping Weight with Sauna Stones: 160.8 lbs (72.9 kg)
SP80E
Room Size: 177-431 cu. ft.
Wattage Rating: 8000
Voltage: 240
Phase: 1
Amperage: 33.3
Circuit Breaker: See Installation and Operation Manual
Wire Size AWG: 8
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): See Installation and Operation Manual
Safety Distance (Left to Right): See Installation and Operation Manual
Stone Capacity: 110 lbs (49.9 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 15" (38.1 cm)
Depth: 13.1" (33.3 cm)
Height: 29.5" (74.9 cm)
Weight: 28.8 lbs (13.1 kg)
Shipping Weight with Sauna Stones: 160.8 lbs (72.9 kg)
SP90E
Room Size: 177-494 cu. ft.
Wattage Rating: 9000
Voltage: 240
Phase: 1
Amperage: 37.5
Circuit Breaker: See Installation and Operation Manual
Wire Size AWG: 8
Safety Listing: ETL (Electrical Testing Laboratories)
Minimum Ceiling Height: 75" (190 cm)
Safety Distance (Front to Back): See Installation and Operation Manual
Safety Distance (Left to Right): See Installation and Operation Manual
Stone Capacity: 110 lbs (49.9 kg)
Stone Size: 2" to 4" (5-10 cm)
Width: 15" (38.1 cm)
Depth: 13.1" (33.3 cm)
Height: 29.5" (74.9 cm)
Weight: 28.8 lbs (13.1 kg)
Shipping Weight with Sauna Stones: 160.8 lbs (72.9 kg)
CX30-U1-U3-XW (for SP60E)
Maximum Output Kilowatt Rating: 7kW
Voltage: 240
Phase: 1
Temperature Adjustment Range: 104-194°F
Pre-Setting Time Adjustment Range: 0-12 Hours
Width: 3.4" (8.6 cm)
Depth: 1" (2.5 cm)
Height: 4.4" (11.2 cm)
CX45-U1-U3-XW (for SP80E, SP90E)
Maximum Output Kilowatt Rating: 10.8kW
Voltage: 240
Phase: 1
Temperature Adjustment Range: 104-194°F
Pre-Setting Time Adjustment Range: 0-12 Hours
Width: 3.4" (8.6 cm)
Depth: 1" (2.5 cm)
Height: 4.4" (11.2 cm)
-
Spirit Sauna Heater
Sauna Heater
Temperature Sensor
Please note: Must install per the instructions in the heater manual.
Wall-Mounting Bracket
Mounting Screws
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Xenio Wi-Fi Control
Control
Temperature Sensor
Please note: Must install the sensor included with the heater per the instructions in the heater manual.
Power Unit
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
132 lbs of 2" to 4" (5-10 cm) Round Stones
-
