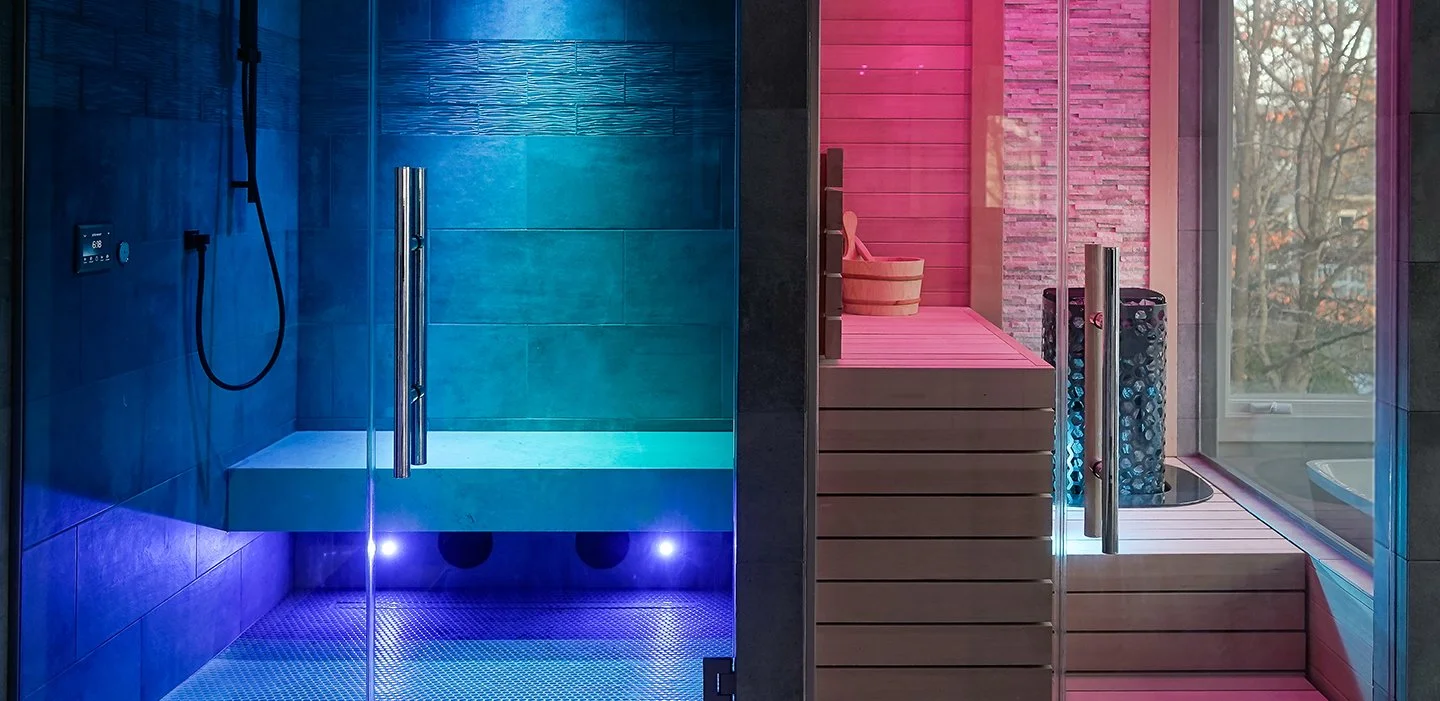

Relax, unwind, and let yourself be enveloped in the tranquil color-soaked vapor. As your bath warms, the emerging fog becomes a vibrant showcase to fulfill its promise of absolute color bathing splendor. Once composed and restored, you will then want to select a color for your rejuvenating shower as you begin your transition back to reality. Transform your sauna experience into an escape from tension and fatigue with the Spectrum 511 chromotherapy color bathing system from Bathology. Select from an infinite array of vivid colors to create an effect that is exhilarating, calming, energizing or relaxing. Enjoy the synergy formed between the heat and color and delight in a truly extraordinary bathing experience.
The Spectrum 510 & 511 utilize the intelligence of DMX communication for the radiance of its awe-inspiring colors and superior Chromatherapy experience. Benefiting from technology normally reserved for stage lighting professionals, Bathology captures the essence of this protocol to bring the stage to you. These brilliant LED lights can immerse any shower, steam bath, sauna room or bathing space in most any color…including white.
The brilliance of Spectrum Color Bathing Systems is in their LED RGB lights. These low-profile fixtures boast an impressive IP 68 water-proof rating and a small-scale 1-1/4" diameter lens to cast their shine. Appropriately named "Brilliance" for their undeniable luster, these dynamic ceiling and wall mounted mood lights benefit from one tri-color LED for superior color mixing innovation.
Essential to the Spectrum Color Bathing experience is its premiere wall-mounted touch interface. Intuitive, low-voltage, and featuring a back-lit face, this veritable color command center will respond to the most delicate of touches. Select from pre-set red, green, blue and white; or with the swipe of a finger, create the color of your mood. When your stage has been set, it can be dimmed for true personal bathing ambiance. When the mood is right, consider one of the four rainbow modes which sequences pre-programmed colors for a soothing color bathing effect.
The Spectrum 510 is packaged with one Brilliance 410 LED RGB color ceiling light which is ideal for horizontal surface installation. This fixture contains a clear, optical grade PMMA lens for maximum brightness. For environments greater than 12 square feet or where even more vibrant color is desired, consider adding additional lights (shown below) up to a maximum of 6 lights per system (More than 6 lights requires a second driver, see required products below). Note: As room layout and color bathing preferences do vary, Bathology provides a guideline of one Brilliance 410 fixture per 8 square foot of ceiling space.
The Spectrum 511 is packaged with one Brilliance 450 LED RGB color light. This fixture contains a frosted, tempered glass lens. These fixtures (shown below) soften the light and provide for a more diffused glow. For environments greater than 12 square feet or where even more vibrant color is desired, consider adding additional lights (shown below) up to a maximum of 6 lights per system (More than 6 lights requires a second driver, see required products below). Consider the bathing ambience that lighting a room’s perimeter or bench can afford. Note: As room layout and color bathing preferences do vary, Bathology provides a guideline of one Brilliance 450 fixture per 3 lineal foot of wall or per 8 square feet of ceiling space.
-
Spectrum 510
Back-lit touch interface
Single zone LED RGB color bathing system
6-Light capacity (More than 6 lights requires a second driver, see required products below)
Low-voltage LED lights
RGB White light
Red, Green, Blue & White color pre-sets
Rainbow color sequencing mode, 4-pre-sets
Suitable for use as primary light source
IP68 Waterproof light fixtures
Custom color mode
Dimming function
Luminous Flux (Lm) 88±2.5%
Stainless Steel Material
40-Degree beam angle
Spectrum 511
Back-lit touch interface
Single zone LED RGB color bathing system
6-Light capacity (More than 6 lights requires a second driver, see required products below)
Low-voltage LED lights
RGB White light
Red, Green, Blue & White color pre-sets
Rainbow color sequencing mode, 4-pre-sets
Suitable for use as primary light source
IP68 Waterproof light fixtures
Custom color mode
Dimming function
Luminous Flux (Lm) 88±2.5%
Aluminum Material
120-degree beam angle
-
Spectrum 510
DMX Driver
Operating Voltage: 24VDC
Power Consumption: 4.2 - 12.6 watts per channel
Output Current: 350mA
Light Capacity: 6 Lights (per driver)
Dimensions: 7”L x 1.81”W x .82”H
IN Cable: CAT6
Listings: CE / FCC / CRUus
Power Supply
Operating Voltage: 120V AC
Output Voltage: 24V DC
Power Consumption: 90W
Nominal Amperage: 1.3 Amps
Dimensions: 2”W x 7”L x 1-1/4”H
Connector: 12V - 50’ Long
Touch Interface
Trim: ~
Housing: ~
Dimensions: ~
Power Consumption: ~
Brilliance Fixture
Type: LED RGB
Operating Voltage: 12V DC
Maximum Input Current: 350mA
LED: 1 x 3 Watt RGB in One
Beam Angle: 35 Degree Clear / 120 Degree Frosted
Lumen: 88 Lumens max per fixture
Trim Finish: Polished Stainless Steel
Housing Composition: Stainless Steel
Lens: Clear or Frosted, 1-1/4” Diameter
Lens Composition: Optical Grade PMMA
"Rough-In" Cut-Out: 1-5/8”
Trim Dimensions: 2" Diameter, 1/8” Profile
Body Dimensions: 1-5/8” Diameter x 2-1/4” Deep
Rating: IP68
Certifications: CE / RoHS / WEEE
Fastener: Steel Spring Clips
Spectrum 511
DMX Driver
Operating Voltage: 24VDC
Power Consumption: 4.2 - 12.6 watts per channel
Output Current: 350mA
Light Capacity: 6 Lights (per driver)
Dimensions: 7”L x 1.81”W x .82”H
IN Cable: 3-Pin, 24Gauge, 50'
Listing: CE / FCC/ CRUus
Power Supply
Operating Voltage: 120V AC
Output Voltage: 24V DC
Power Consumption: 90W
Nominal Amperage: 1.3 Amps
Dimensions: 2”W x 7”L x 1-1/4”H
Connector: 12V - 50’ Long
Touch Interface
Trim: ~
Housing: ~
Dimensions: ~
Power Consumption: ~
Brilliance Fixture
Type: LED RGB
Operating Voltage: 12V DC
Maximum Input Current: 350mA
LED: 1 x 3 Watt RGB in One
Beam Angle: 120 Degree
Lumen: 88 Lumens max per fixture
Trim Finish: Polished Stainless Steel
Housing Composition: First Grade Aluminum
Lens: Frosted, 1-1/4” Diameter
Lens Composition: Optical Grade PMMA
Rough-in Cutout: 1-5/8”
Trim Dimension: 2" Diameter, 1/8” Profile
Body Dimensions: 1-5/8” Diameter x 2-1/4” Deep
Rating: IP68
Certifications: CE / RoHS / WEEE
Fastener: Steel Spring Clips
-
Brilliant color lighting
Small-scale, low-profile fixtures
Ceiling, wall or floor mounting
RGB White light
Intuitive user interface
Low-voltage safe operation
Dimmable lighting
Waterproof led lights
Versatile and customizable color bathing system
Single zone lighting control
-
Spectrum 510
DMX Driver
Touch interface
Power supply, 24V DC
Power supply connector, 50’
One Cat6 cable, DMX
One Cat6 cable, light, 25’
One Light Output Box
One Brilliance 410 light fixture (LED RGB Ceiling Light)
Installation and operation manual
Spectrum 511
DMX Driver
Touch interface
Power supply, 24V DC
Power supply connector, 50'
One Cat6 cable, DMX
One Cat6 cable, light, 25’
One Light Output Box
One Brilliance 450 light fixture (LED RGB Wall, Floor & Ceiling Light)
Installation and operation manual
-
Current ETA: 1-2 weeks. Shipping lead time is subject to change.
FREE shipping within the contiguous United States.
**If you’re in Canada, please reach out for a shipping quote.
-
